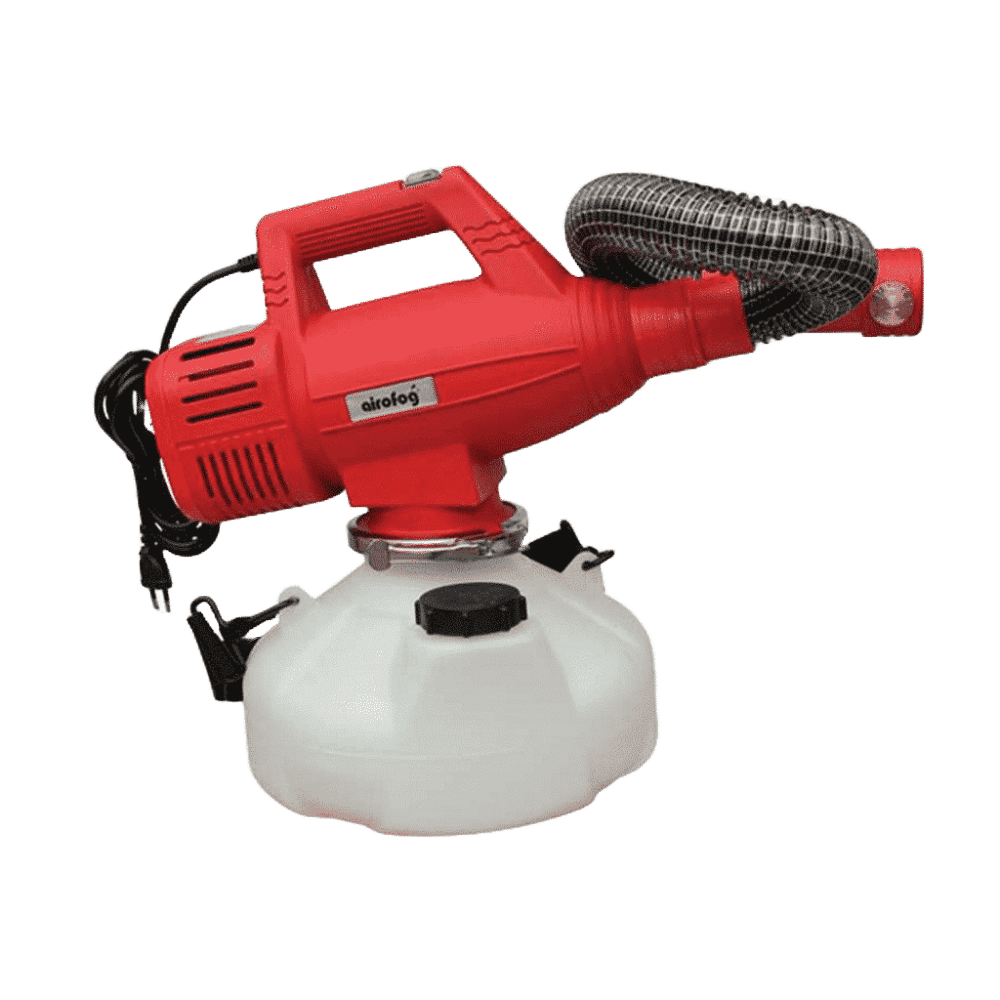

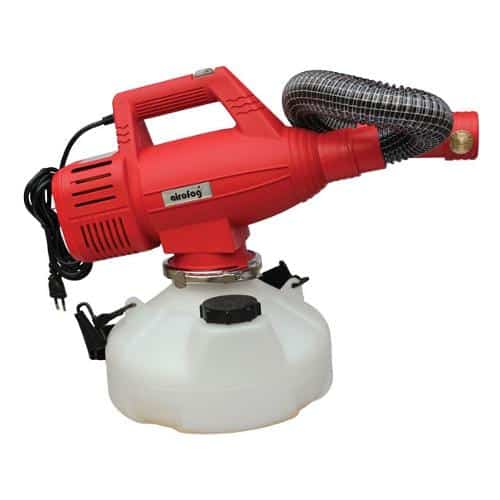

Airofog U120 ULV Cold Sprayer

BUY IN CANADA

At almost double the speed of anything on the market, Airofog U120 ULV Sprayer is built with a RUGGED 700-watt induction motor and fan generating an amazing 38,000 RPM and air speed of 426.5 feet-per-second with the ULV traveling more than 40 feet!

$395.00

SKU: AAFOG120 Categories: , Brand:

Specifications: 20” flex hose, electric motor output at 38,000 rpm that generates an airspeed of 426 ft per sec. consistent 15-25 microns (based on adjustments of output). works with oil or water or oil based, pesticides, sterilizers, odor control and disinfectants. check product label for direction on use. variable flow control, 1.25-gallon solution tank. turn off solution control knob before turning off motor to prevent splatter.

German engineering and design: (with the technology used by NASA and the US Army Air Mobility R&D Laboratory). A vortex double-turbine nozzle and a double-turbine atomizer work in two stages to break up liquid at a high velocity. Liquid passes through a conical diffuser, compressed air passes a second time in an opposite direction (the second turbine nozzle technology) to sheer the liquid particles to a consistent 15 microns. The fine aerosol droplets from this sprayer will remain airborne for a long period of time and are dispersed over a large area by the powerful air outlet at the nozzle.

Many Threats. One Solution.™

ULV 120 Operations

Prepping the Cold Fogger

  • Remove the closure ring (5) and check the tank (6) is clean.

  • Replace the power head (7), making sure the tank gasket (4) is in place and return the closure ring (5) to its position.

  • Pour the solution into the tank (6) then close the filling cap (8), make sure the gasket (9) is in position.

  • Before connecting the power plug (3) to a power socket, make sure that:

    • flow control knob (2) on close position

    • switch (1) is set to the off position

  • Aim the nozzle in the required direction and switch on the appliance.

  • Adjust flow control knob for the quantity of product to be distributed.

  • Once fogging is complete, close the control knob before switching off the appliance.

  • Disconnect the power plug from power socket.

  • Remove residues of solution and empty tank, fogging with warm water.

Finished Fogging

  • Make sure the power plug (3) is disconnected from the power socket.

  • When using solution which creates foam, keep the foam from penetrating into the power head (7) to damage the motor, in any case the foam level should be kept lower than the PP filter.

  • Plan the job so that the fogger draws in the fog as little as possible through its intake. We recommend starting towards the end of your site and work your way towards the exit.

ULV120 Care Maintenance

ULV 120 Parts List

ULV 120 Assembly

Care & Maintenance

  • Periodically clean the liquid filter (20) and the PP filter (29 & 29/1). Remove the filter and rinse it with running water to remove the clinging particles.

  • Avoid contamination when changing chemicals by running the fogger with clean water (or appropriate solvent) through the unit and rinse tank thoroughly.

  • Periodically check the cleanliness of the air filter (11). If the motor does not breathe a sufficient quantity of clean air, the fogging operation will be inefficient and the motor could be overheated.

  • Contact AIROFOG USA or an authorized dealer for technical assistance.

Parts

Pos. Description Part No.
1 Motor 240 VAC/800W 260-001-240
1 Motor 120 VAC/700W 260-001-120
2 Motor sealing ring 260-002-000
3 Power supply Cpl. 240V 260-003-240
3 Power supply Cpl. 120V 260-003-120
4 Cable 5m 240V 260-004-240
4 Cable 5m 120V 260-004-120
5 On-off switch 260-005-000
6 Switch protector 260-006-000
7 Grommet 260-007-000
8 EMI filter 260-008-000
9 Fuse 10A 260-009-120
10 Tapping screw 260-010-000
11 Air filter 260-011-000
12 Air filter cover 240-012-000
12/1 Cover holder 240-012-010
12/2 Screw M6x12 260-012-020
13 Screw M3x12 505-009-142
14 Gasket 260-014-000
15 Gasket 935-056-010
16 Tube adapter M5 260-016-000
16/1 Tube adapter M5/M8 260-016-010
17 Wire clip 260-017-000
17/1 Protective spring 240-017-010
17/3 Protective spring 260-017-030
18 Solution tube 16cm 260-018-000
19 Soulution filter adapter 240-019-000
20 Solution filter 240-020-000
21 Solution filter assembly 240-021-000
24 Air tube 18cm 260-024-000
25 Tube holder 260-025-000
26 Air tube assembly 260-026-000
27 Motor body “R” 260-027-000
28 Motor body “L” 260-028-000
29 PP filter 260-029-000
30 Viton Seal 260-030-000
31 50cm seal 260-031-000
32 Sealing ring 260-032-000
33 Closure ring 260-033-000
34/2 Solution tank 1gal round 240-034-000
34/3 Cap 240-034-010
34/4 Gasket 240-034-020
35 Nozzle assembly 240-035-010
36 Nozzle holder 240-036-010
37 Atomizer 240-037-000
38 Nozzle 240-038-000
39 Flow regulator needle 240-039-000
39/1 O-ring 240-039-010
40 E-ring 240-040-000
41 O-ring 240-041-000
42 Label (+/-) 240-042-000
43 Countersunk screw M3x45 240-043-000
45 O-ring 260-045-000
47 Extension hose adapter 260-047-000
48 Washer 260-048-000
49 Screw M3x22 260-049-000
50 Hose adapter 260-050-000
51 Countersunk screw M3x10 260-051-000
52 Nut M3 505-009-141
53 Extension hose 0.5m 260-053-050
53 Extension hose 1m 260-053-100
54 Countersunk screw M3x20 260-054-000
55 Handle 260-055-000
56 Extension hose assembly .5m 260-056-050
56 Extension hose assembly 1m 260-056-100
57 Extension tube 84cm 260-057-050
57 Extension tube 1.35m 260-057-100
61 Carrying strap 260-061-000
— Sticker set (www… & Airofog…) 260-064-000
— Label (U260) 260-065-000
— Label (U120) 260-066-000
— Sticker set (Periodically… & This… & Only…) 260-067-000
— Service kit (15×3, 20, 29, 30, 31, 32, 34/4, 40, 1.2m tube) 240-068-000
— Instruction manual 240-260-000

ULV 120 Manual
